Image: Freefly Systems
Freefly Systems · USA

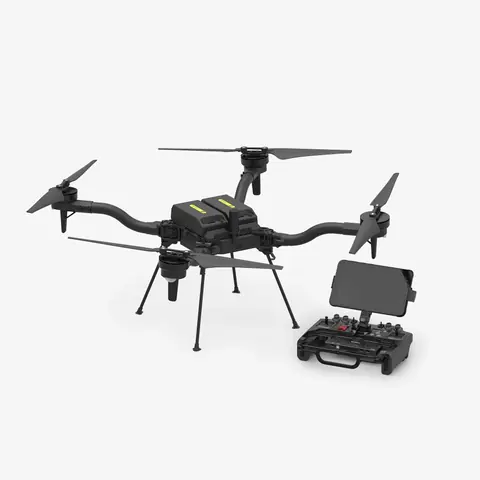

Freefly Astro Max
Open, modular drone for mapping, LiDAR and thermal work
- Flight time
- 39 min
- Weight
- 3.52 kg
from CHF 19'200
excl. VAT
Manufacturer price: USD 22'995 (Astro Max aircraft (Freefly store)), store.freeflysystems.com, 11.10.2026, Rate USD 0.83931
Shipping, customs clearance and 8.1 % Swiss import VAT come on top. Industrial goods have been duty-free since 1 January 2024. Brevity's quote lists the device, import and services separately.
Add to requestRequest directlyOverview
Freefly Astro Max is a survey drone by Freefly Systems (USA). Flight time 39 min, Weight 3.52 kg. The manufacturer takes orders and delivers.
Technical data
| Size and weightDimensions | 359 mm unfolded; 930 mm without props, 1,407 mm with props |
|---|---|
| Weight | 3,523 g typical empty; max takeoff 8,700 g |
| MotionPayload | 3,000 g |
| EnergyBattery | 2x SL8-Air 6S 157 Wh (1,035 g each) |
| Runtime | 39 min without payload |
| Compute and sensorsCompute | Freefly Skynode, Auterion PX4, Cortex-A53 computer |
| Sensors | payloads: Sony ILX-LR1 61 MP, LiDAR (Flux, Hovermap), thermal, multispectral, OGI |
| SoftwareSoftware | Auterion Mission Control, Auterion Suite |
| OtherOther | -20 to 50 C; Pilot Pro controller; payload mounts via Smart Dovetail |
Manufacturer data, as of 11.10.2026. Manufacturer page
Variants and prices
| Variant | Source price | Type | Date |
|---|---|---|---|
| Astro Max aircraft (Freefly store) | USD 22'995 | Manufacturer pricestore.freeflysystems.com | 11.10.2026 |
| Astro Max NDAA/Blue version | USD 28'995 | Manufacturer pricestore.freeflysystems.com | 11.10.2026 |
| Astro Max Mapping Essentials kit | USD 37'725 | Manufacturer pricestore.freeflysystems.com | 11.10.2026 |
Converted at the rates of 09.10.2026 (BAZG Devisen-Tageskurse (ESTV)).
Comparable
All 5 models: Surveying and mapping
Request
Request Freefly Astro Max.
You receive a quote with a fixed price, delivery time and commissioning.
